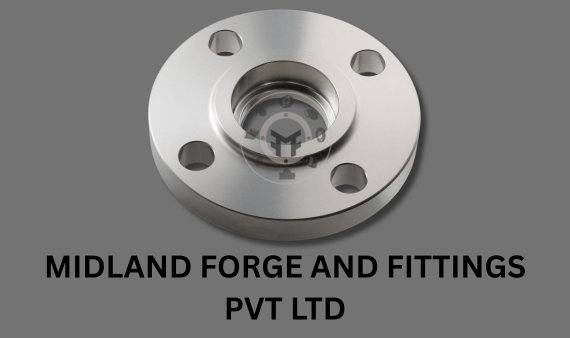

Socket Weld Pipe Flange Specifications
Socket Weld Flange – Materials, Grades & Standards
| Material Category | Standards / Grades (ASTM / ASME) | Pressure Class / Size Range | Typical Use / Application |
|---|---|---|---|
| Stainless Steel | ASTM A182 F304 / F304L / F304H | Class 150 – 2500, Size ½”–48” | General purpose, corrosion-resistant piping |
| ASTM A182 F316 / F316L / F316H | Class 150 – 2500, Size ½”–48” | Chemical, marine, food & pharma industries | |
| ASTM A182 F321 / F321H | Class 150 – 1500, Size ½”–24” | High temperature, stabilized service | |
| Carbon Steel | ASTM A105 (Forged CS) | Class 150 – 2500, Size ½”–48” | Pressure piping, oil & gas, general industries |
| ASTM A350 LF2 (Low Temp CS) | Class 150 – 1500, Size ½”–24” | Cryogenic & low temperature applications | |
| Alloy Steel | ASTM A182 F11 / F22 (Cr-Mo) | Class 150 – 2500, Size ½”–24” | Power plants, refineries, steam pipelines |
| ASTM A182 F91 | Class 150 – 2500, Size ½”–24” | High-temperature, power generation | |
| Duplex / Super Duplex | ASTM A182 F51 / F53 / F55 / F60 (UNS S31803 / S32205 / S32750 / S32760) | Class 150 – 2500, Size ½”–24” | Offshore, seawater, high corrosion service |
| Nickel Alloys | ASTM B564 Inconel 600 / 625 / 718 | Class 150 – 2500, Size ½”–24” | Heat exchangers, chemical, aerospace |
| ASTM B564 Monel 400 / K500 | Class 150 – 2500, Size ½”–24” | Marine, seawater handling, pumps | |
| Copper Nickel | ASTM B151 / B467 (Cu-Ni 90/10, 70/30) | Class 150 – 600, Size ½”–24” | Shipbuilding, desalination, seawater systems |
| Titanium | ASTM B381 Gr. 2 / Gr. 5 | Class 150 – 600, Size ½”–12” | Aerospace, seawater, lightweight piping |
| Aluminium | ASTM B247 6061 / 5083 | Class 150 – 300, Size ½”–12” | Lightweight, non-corrosive, low-pressure piping |

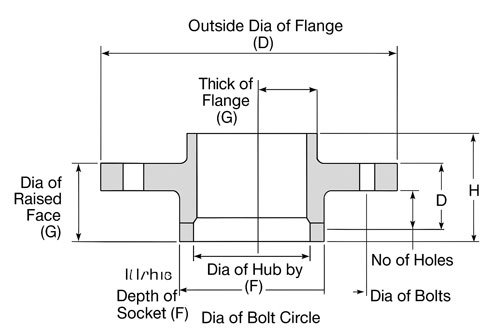

ANSI/ASME B16.5 Class 150 RF Socket Weld Flange – Dimensions & Sizes in mm
| Nominal size |
Outside Dia of Flange (D) |
Thick of Flange (B) |
Dia of Raised Face (G) |
Dia of Hub at Base (A) |
Length thru Hub (H) |
Dia of Bore (ID) |
Depth of Socket (F) | No of Holes |
Dia of Holes (L) |
Dia of Bolts |
Dia of Bolt Circle (K) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 88.9 | 11.2 | 35.1 | 30.2 | 15.7 | 22.4 | 9.7 | 4 | 15.7 | 1/2 | 60.5 |
| 3/4 | 98.6 | 12.7 | 42.9 | 38.1 | 15.7 | 27.7 | 11.2 | 4 | 15.7 | 1/2 | 69.9 |
| 1 | 108 | 14.2 | 50.8 | 49.3 | 17.5 | 34.5 | 12.7 | 4 | 15.7 | 1/2 | 79.2 |
| 1-1/4 | 117.3 | 15.7 | 63.5 | 58.7 | 20.6 | 43.2 | 14.2 | 4 | 15.7 | 1/2 | 88.9 |
| 1-1/2 | 127 | 17.5 | 73.2 | 65 | 22.4 | 49.5 | 15.7 | 4 | 15.7 | 1/2 | 98.6 |
| 2 | 152.4 | 19.1 | 91.9 | 77.7 | 25.4 | 62 | 17.5 | 4 | 19.1 | 5/8 | 120.7 |
| 2-1/2 | 177.8 | 22.4 | 104.6 | 90.4 | 28.4 | 74.7 | 19.1 | 4 | 19.1 | 5/8 | 139.7 |
| 3 | 190.5 | 23.9 | 127 | 108 | 30.2 | 90.7 | 20.6 | 4 | 19.1 | 5/8 | 152.4 |
| 3-1/2 | 215.9 | 23.9 | 139.7 | 122.2 | 31.8 | 103.4 | 8 | 19.1 | 5/8 | 177.8 | |
| 4 | 228.6 | 23.9 | 157.2 | 134.9 | 33.3 | 116.1 | 8 | 19.1 | 5/8 | 190.5 | |
| 5 | 254 | 23.9 | 185.7 | 163.6 | 36.6 | 143.8 | 8 | 22.4 | 3/4 | 215.9 | |
| 6 | 279.4 | 25.4 | 215.9 | 192 | 39.6 | 170.7 | 8 | 22.4 | 3/4 | 241.3 | |
| 8 | 342.9 | 28.4 | 269.7 | 246.1 | 44.5 | 221.5 | 8 | 22.4 | 3/4 | 298.5 | |
| 10 | 406.4 | 30.2 | 323.9 | 304.8 | 49.3 | 276.4 | 12 | 25.4 | 7/8 | 362 | |
| 12 | 482.6 | 31.8 | 381 | 365.3 | 55.6 | 327.2 | 12 | 25.4 | 7/8 | 431.8 | |
| 14 | 533.4 | 35.1 | 412.8 | 400.1 | 57.2 | 359.2 | 12 | 28.4 | 1 | 476.3 | |
| 16 | 596.9 | 36.6 | 469.9 | 457.2 | 63.5 | 410.5 | 16 | 28.4 | 1 | 539.8 | |
| 18 | 635 | 39.6 | 533.4 | 505 | 68.3 | 461.8 | 16 | 31.8 | 1-1/8 | 577.9 | |
| 20 | 698.5 | 42.9 | 584.2 | 558.8 | 73.2 | 513.1 | 20 | 31.8 | 1-1/8 | 635 | |
| 24 | 812.8 | 47.8 | 692.2 | 663.4 | 82.6 | 616 | 20 | 35.1 | 1-1/4 | 749.3 |
ANSI/ASME B16.5 Class 300 RF Socket Weld Flange – Dimensions & Sizes in mm
| Nominal size |
Outside Dia of Flange (D) |
Thick of Flange (B) |
Dia of Raised Face (G) |
Dia of Hub at Base (A) |
Length thru Hub (H) |
Dia of Bore (ID) |
Depth of Socket (F) |
No of Holes |
Dia of Holes (L) |
Dia of Bolts |
Dia of Bolt Circle (K) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 95.3 | 14.2 | 35.1 | 38.1 | 22.4 | 22.4 | 9.7 | 4 | 15.7 | 1/2 | 66.5 |
| 3/4 | 117.3 | 15.7 | 42.9 | 47.8 | 25.4 | 27.7 | 11.2 | 4 | 19.1 | 5/8 | 82.6 |
| 1 | 124 | 17.5 | 50.8 | 53.8 | 26.9 | 34.5 | 12.7 | 4 | 19.1 | 5/8 | 88.9 |
| 1-1/4 | 133.4 | 19.1 | 63.5 | 63.5 | 26.9 | 43.2 | 14.2 | 4 | 19.1 | 5/8 | 98.6 |
| 1-1/2 | 155.4 | 20.6 | 73.2 | 69.9 | 30.2 | 49.5 | 15.7 | 4 | 22.4 | 3/4 | 114.3 |
| 2 | 165.1 | 22.4 | 91.9 | 84.1 | 33.3 | 62 | 17.5 | 8 | 19.1 | 5/8 | 127 |
| 2-1/2 | 190.5 | 25.4 | 104.6 | 100.1 | 38.1 | 74.7 | 19.1 | 8 | 22.4 | 3/4 | 149.4 |
| 3 | 209.6 | 28.4 | 127 | 117.3 | 42.9 | 90.7 | 20.6 | 8 | 22.4 | 3/4 | 168.1 |
| 3-1/2 | 228.6 | 30.2 | 139.7 | 133.4 | 44.5 | 103.4 | 8 | 22.4 | 3/4 | 184.2 | |
| 4 | 254 | 31.8 | 157.2 | 146.1 | 47.8 | 116.1 | 8 | 22.4 | 3/4 | 200.2 | |
| 5 | 279.4 | 35.1 | 185.7 | 177.8 | 50.8 | 143.8 | 8 | 22.4 | 3/4 | 235 | |
| 6 | 317.5 | 36.6 | 215.9 | 206.2 | 52.3 | 170.7 | 12 | 22.4 | 3/4 | 269.7 | |
| 8 | 381 | 41.1 | 269.7 | 260.4 | 62 | 221.5 | 12 | 25.4 | 7/8 | 330.2 | |
| 10 | 444.5 | 47.8 | 323.9 | 320.5 | 66.5 | 276.4 | 16 | 28.4 | 1 | 387.4 | |
| 12 | 520.7 | 50.8 | 381 | 374.7 | 73.2 | 327.2 | 16 | 31.8 | 1-1/8 | 450.9 | |
| 14 | 584.2 | 53.8 | 412.8 | 425.5 | 76.2 | 359.2 | 16 | 31.8 | 1-1/8 | 514.4 | |
| 16 | 647.7 | 57.2 | 469.9 | 482.6 | 82.6 | 410.5 | 20 | 35.1 | 1-1/4 | 571.5 | |
| 18 | 711.2 | 60.5 | 533.4 | 533.4 | 88.9 | 461.8 | 24 | 35.1 | 1-1/4 | 628.7 | |
| 20 | 774.7 | 63.5 | 584.2 | 587.2 | 95.3 | 513.1 | 24 | 35.1 | 1-1/4 | 685.8 | |
| 24 | 914.4 | 69.9 | 692.2 | 701.5 | 106.4 | 616 | 24 | 41.1 | 1-1/2 | 812.8 |
ANSI/ASME B16.5 Class 600 RF Socket Weld Flange – Dimensions & Sizes in mm
| Nominal size |
Outside Dia of Flange (D) |
Thick of Flange (B) |
Dia of Raised Face (G) |
Dia of Hub at Base (A) |
Length thru Hub (H) |
Dia of Bore (ID) |
Depth of Socket (F) |
No of Holes |
Dia of Holes (L) |
Dia of Bolts |
Dia of Bolt Circle (K) |
Approx Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 95.3 | 14.2 | 35.1 | 38.1 | 22.4 | 22.4 | 9.7 | 4 | 15.7 | 1/2 | 66.5 | 1 |
| 3/4 | 117.3 | 15.7 | 42.9 | 47.8 | 25.4 | 27.7 | 11.2 | 4 | 19.1 | 5/8 | 82.6 | 1 |
| 1 | 124 | 17.5 | 50.8 | 53.8 | 26.9 | 34.5 | 12.7 | 4 | 19.1 | 5/8 | 88.9 | 2 |
| 1-1/4 | 133.4 | 20.6 | 63.5 | 63.5 | 28.4 | 43.2 | 14.2 | 4 | 19.1 | 5/8 | 98.6 | 2 |
| 1-1/2 | 155.4 | 22.4 | 73.2 | 69.9 | 31.8 | 49.5 | 15.7 | 4 | 22.4 | 3/4 | 114.3 | 3 |
| 2 | 165.1 | 25.4 | 91.9 | 84.1 | 36.6 | 62 | 17.5 | 8 | 19.1 | 5/8 | 127 | 4 |
| 2-1/2 | 190.5 | 28.4 | 104.6 | 100.1 | 41.1 | 74.7 | 19.1 | 8 | 22.4 | 3/4 | 149.4 | 6 |
| 3 | 209.6 | 31.8 | 127 | 117.3 | 46 | 90.7 | 20.6 | 8 | 22.4 | 3/4 | 168.1 | 7 |
| 3-1/2 | 228.6 | 35.1 | 139.7 | 133.4 | 49.3 | 103.4 | 8 | 25.4 | 7/8 | 184.2 | 10 | |
| 4 | 273.1 | 38.1 | 157.2 | 152.4 | 53.8 | 116.1 | 8 | 25.4 | 7/8 | 215.9 | 17 | |
| 5 | 330.2 | 44.5 | 185.7 | 189 | 60.5 | 143.8 | 8 | 28.4 | 1 | 266.7 | 29 | |
| 6 | 355.6 | 47.8 | 215.9 | 222.3 | 66.5 | 170.7 | 12 | 28.4 | 1 | 292.1 | 36 | |
| 8 | 419.1 | 55.6 | 269.7 | 273.1 | 76.2 | 221.5 | 12 | 31.8 | 1-1/8 | 349.3 | 52 | |
| 10 | 508 | 63.5 | 323.9 | 342.9 | 85.9 | 276.4 | 16 | 35.1 | 1-1/4 | 431.8 | 77 | |
| 12 | 558.8 | 66.5 | 381 | 400.1 | 91.9 | 327.2 | 20 | 35.1 | 1-1/4 | 489 | 91 | |
| 14 | 603.3 | 69.9 | 412.8 | 431.8 | 93.7 | 359.2 | 20 | 38.1 | 1-3/8 | 527.1 | 104 | |
| 16 | 685.8 | 76.2 | 469.9 | 495.3 | 106.4 | 410.5 | 20 | 41.1 | 1-1/2 | 603.3 | 150 | |
| 18 | 743 | 82.6 | 533.4 | 546.1 | 117.3 | 461.8 | 20 | 44.5 | 1-5/8 | 654.1 | 181 | |
| 20 | 812.8 | 88.9 | 584.2 | 609.6 | 127 | 513.1 | 24 | 44.5 | 1-5/8 | 723.9 | 231 | |
| 24 | 939.8 | 101.6 | 692.2 | 717.6 | 139.7 | 616 | 24 | 50.8 | 1-7/8 | 838.2 | 331 |
ANSI/ASME B16.5 Class 1500 RF Socket Weld Flange – Dimensions & Sizes in mm
| Nominal size |
Outside Dia of Flange (D) |
Thick of Flange (B) |
Dia of Raised Face (G) |
Dia of Hub at Base (A) |
Length thru Hub (H) |
Dia of Bore (ID) |
Depth of Socket (F) |
No of Holes |
Dia of Holes (L) |
Dia of Bolts |
Dia of Bolt Circle (K) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 120.7 | 22.4 | 35.1 | 38.1 | 31.8 | 22.4 | 9.7 | 4 | 22.4 | 3/4 | 82.6 |
| 3/4 | 130 | 25.4 | 42.9 | 44.5 | 35.1 | 27.7 | 11.2 | 4 | 22.4 | 3/4 | 88.9 |
| 1 | 149.4 | 28.4 | 50.8 | 52.3 | 41.1 | 34.5 | 12.7 | 4 | 25.4 | 7/8 | 101.6 |
| 1-1/4 | 158.8 | 28.4 | 63.5 | 63.5 | 41.1 | 43.2 | 14.2 | 4 | 25.4 | 7/8 | 111.3 |
| 1-1/2 | 177.8 | 31.8 | 73.2 | 69.9 | 44.5 | 49.5 | 15.7 | 4 | 28.4 | 1 | 124 |
| 2 | 215.9 | 38.1 | 91.9 | 104.6 | 57.2 | 62 | 17.5 | 8 | 25.4 | 7/8 | 165.1 |
| 2-1/2 | 244.3 | 41.1 | 104.6 | 124 | 63.5 | 74.7 | 8 | 19.1 | 28.4 | 1 | 190.5 |
| 3 | 266.7 | 47.8 | 127 | 133.4 | 73.2 | 8 | 31.8 | 1-1/8 | 203.2 | ||
| 4 | 311.2 | 53.8 | 157.2 | 162.1 | 90.4 | 8 | 35.1 | 1-1/4 | 241.3 | ||
| 5 | 374.7 | 73.2 | 185.7 | 196.9 | 104.6 | 8 | 41.1 | 1-1/2 | 292.1 | ||
| 6 | 393.7 | 82.6 | 215.9 | 228.6 | 119.1 | 12 | 38.1 | 1-3/8 | 317.5 | ||
| 8 | 482.6 | 91.9 | 269.7 | 292.1 | 142.7 | 12 | 44.5 | 1-5/8 | 393.7 | ||
| 10 | 584.2 | 108 | 323.9 | 368.3 | 158.8 | 12 | 50.8 | 1-7/8 | 482.6 | ||
| 12 | 673.1 | 124 | 381 | 450.9 | 180.8 | 16 | 53.8 | 2 | 571.5 | ||
| 14 | 749.3 | 133.4 | 412.8 | 495.3 | 16 | 60.5 | 2-1/4 | 635 | |||
| 16 | 825.5 | 146.1 | 469.9 | 552.5 | 16 | 66.5 | 2-1/2 | 704.9 | |||
| 18 | 914.4 | 162.1 | 533.4 | 596.9 | 16 | 73.2 | 2-3/4 | 774.7 | |||
| 20 | 984.3 | 177.8 | 584.2 | 641.4 | 16 | 79.2 | 3 | 831.9 | |||
| 24 | 1168.4 | 203.2 | 692.2 | 762 | 16 | 91.9 | 3-1/2 | 990.6 |
Socket Weld Piping Flange Weight Chart (lbs) – Pressure Class 150 to 2500
| Nominal Pipe Size (NPS) | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
|---|---|---|---|---|---|---|---|
| ½” | 1.0 | 1.5 | 1.8 | 2.1 | 3.0 | 4.2 | 6.5 |
| ¾” | 1.2 | 1.9 | 2.3 | 2.8 | 4.0 | 5.8 | 8.7 |
| 1” | 1.5 | 2.5 | 3.0 | 3.6 | 5.2 | 7.6 | 11.4 |
| 1 ½” | 2.3 | 3.8 | 4.6 | 5.5 | 8.1 | 12.0 | 18.2 |
| 2” | 3.1 | 5.0 | 6.1 | 7.2 | 10.6 | 15.8 | 24.5 |
| 3” | 5.2 | 8.7 | 10.5 | 12.7 | 18.7 | 27.8 | 43.0 |
| 4” | 7.8 | 13.0 | 15.8 | 19.0 | 28.0 | 41.8 | 65.0 |
| 6” | 13.8 | 23.0 | 27.5 | 33.0 | 49.0 | 74.0 | 115.0 |
| 8” | 21.0 | 35.0 | 42.0 | 50.0 | 75.0 | 113.0 | 176.0 |
| 10” | 30.0 | 50.0 | 60.0 | 72.0 | 108.0 | 162.0 | 252.0 |
| 12” | 42.0 | 70.0 | 84.0 | 101.0 | 151.0 | 227.0 | 353.0 |
| 14” | 51.0 | 85.0 | 102.0 | 122.0 | 183.0 | 275.0 | 428.0 |
| 16” | 64.0 | 107.0 | 128.0 | 153.0 | 229.0 | 343.0 | 535.0 |
| 18” | 77.0 | 128.0 | 153.0 | 183.0 | 275.0 | 411.0 | 642.0 |
| 20” | 92.0 | 153.0 | 183.0 | 220.0 | 330.0 | 493.0 | 771.0 |
| 24” | 120.0 | 200.0 | 240.0 | 288.0 | 432.0 | 648.0 | 1015.0 |
SWRF Flange Tolerances as per ANSI / ASME B16.5, 16.47
| Parameter | Tolerance (as per ASME B16.5 / B16.47) |
|---|---|
| Outside Diameter of Flange (OD) | ±1.5 mm (for sizes ≤ 24″) / ±3.0 mm (for sizes > 24″) |
| Bolt Circle Diameter | ±1.5 mm |
| Bolt Hole Diameter | ±1.0 mm |
| Bolt Hole Center-to-Center | ±1.0 mm |
| Thickness of Flange (T) | +1.5 mm / –0.0 mm |
| Raised Face Height (RF) | ±0.5 mm |
| Raised Face Diameter | ±1.5 mm |
| Hub Bore (Socket Bore ID) | +1.0 mm / –0.5 mm |
| Socket Depth | ±1.0 mm |
| Concentricity of Bore to OD | ≤ 1.5 mm |
| Runout of Facing (Flatness) | ≤ 0.3 mm for ≤ 10″ / ≤ 0.5 mm for > 10″ |
| Bevel Angle (if applicable) | ±1° |
| Straightness of Hub | ≤ 0.5 mm per 100 mm length |
What makes Socket Weld Flanges different from Slip On and Weld Neck Flanges?
-
Connection Method: Socket weld flanges have a recessed socket to insert the pipe, followed by fillet welding. Slip On flanges fit over the pipe and are fillet welded inside & outside, while Weld Neck flanges require butt welding.
-
Strength: Socket weld flanges are stronger than Slip On flanges but less robust than Weld Neck flanges in high-pressure/cyclic loading.
-
Applications: Preferred for small-bore, high-pressure piping (up to 24”), whereas Weld Neck is used for large-bore or severe cyclic conditions.
What welding considerations should be followed for Socket Weld Flanges?
-
Gap Allowance: A gap (~1.6 mm) should be left between pipe end and flange socket bottom to avoid stress during thermal expansion.
-
Welding Sequence: Single fillet weld around the pipe OD. No internal weld is required, unlike Slip On flanges.
-
Inspection: Radiography is not effective (since it’s a fillet weld), so dye penetrant or ultrasonic testing is often used.
Why are Socket Weld Flanges limited to small bore piping (generally ≤ 24”)?
-
Design Restriction: The socket design is not practical for large diameter pipes due to alignment and stress issues.
-
Fabrication Ease: Easier to align and weld in smaller pipe sizes (½”–2” is most common).
-
Standards: ASME B16.5 covers socket weld flanges up to 24” only. Beyond that, Weld Neck or Blind flanges are recommended.
