Carbon Steel

Carbon steel is a widely used material known for its excellent strength, durability, and cost-effectiveness. It contains varying amounts of carbon, which enhances its hardness and wear resistance while maintaining good weldability and machinability. Carbon steel is classified into three main categories: low-carbon steel (mild steel), medium-carbon steel, and high-carbon steel, each offering unique mechanical properties suited for different applications. Carbon steel is extensively used in industries such as oil & gas, petrochemical, construction, power generation, and automotive due to its high tensile strength and ability to withstand extreme conditions.
ASTM/ASME
Carbon Steel Specifications
Standard
ASTM, ASME, API, DIN, EN, JIS, ISO
Grades
ASTM A105, ASTM A106 Gr. B, ASTM A516 Gr. 60/70, ASTM A350 LF2, ASTM A234 WPB, ASTM A53 Gr. B, ASTM A333 Gr. 6, ASTM A672, ASTM A694 F52/F60/F65/F70
Applications
Oil & Gas, Petrochemical, Power Generation, Chemical Processing, Structural Components, Food Processing, Cladding & Roofing, Railings, Exhaust Systems, Medical & Surgical Instruments
ASTM/ASME
A105, A106, A234, A516, A350, A333, A672, A694, A36, A283, A53
Forms and Products
Pipes and Tubes, Buttweld Fittings, Flanges, Forged Fittings, Sheets, Plates, and Coils, Bars and Rods, Fasteners, Filler Wire, Outlet
Types
Low Carbon Steel, Medium Carbon Steel, High Carbon Steel, Alloy Carbon Steel
Available in all grades

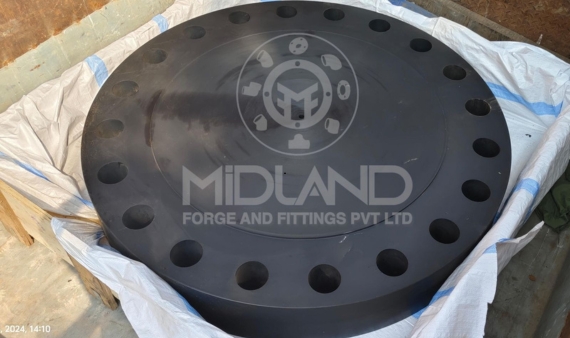

Carbon Steel Products






ASTM / ASME
Equivalent Grades
Grade | ASTM | EN (DIN) | JIS | GOST | BS | AFNOR |
---|---|---|---|---|---|---|
A36 | A36 | 1.0044 | SS400 | 20# | 43A | S235JR |
A106B | A106B | 1.0473 | – | 20# | – | – |
A53B | A53B | 1.0486 | – | – | – | – |
A516-70 | A516-70 | 1.0619 | – | 15H | – | – |
A572-50 | A572-50 | 1.0580 | – | 09G2S | – | – |
A992 | A992 | 1.5705 | – | – | – | – |
A234 WPB | A234 WPB | 1.4401 (X5CrNiMo17) | – | 08Х18Н10 | 304S15 | Z6CN18-09 |
A105 | A105 | 1.0460 | – | – | – | – |
A307 | A307 | – | – | – | – | – |
A325 | A325 | – | – | – | – | – |
ASME / ASTM
Chemical Composition
Grade | Carbon (C) % | Manganese (Mn) % | Phosphorus (P) % | Sulfur (S) % | Silicon (Si) % | Iron (Fe) % |
---|---|---|---|---|---|---|
A36 | 0.26 max | 0.60 – 0.90 | 0.04 max | 0.05 max | 0.40 max | Balance |
A106B | 0.30 – 0.60 | 0.10 – 0.40 | 0.03 max | 0.03 max | 0.10 max | Balance |
A53B | 0.25 – 0.29 | 0.40 max | 0.05 max | 0.045 max | 0.10 max | Balance |
A516-70 | 0.26 – 0.29 | 0.79 – 1.30 | 0.03 max | 0.03 max | 0.08 max | Balance |
A572-50 | 0.21 – 0.23 | 1.35 – 1.65 | 0.04 max | 0.04 max | 0.15 max | Balance |
A992 | 0.23 max | 0.50 – 0.70 | 0.05 max | 0.05 max | 0.40 max | Balance |
A234 WPB | 0.25 – 0.30 | 0.30 – 0.70 | 0.04 max | 0.05 max | 0.10 max | Balance |
A105 | 0.35 – 0.50 | 0.60 – 0.90 | 0.04 max | 0.05 max | 0.15 max | Balance |
A307 | 0.25 – 0.30 | 0.60 max | 0.04 max | 0.05 max | 0.15 max | Balance |
A325 | 0.25 – 0.29 | 0.60 – 0.90 | 0.04 max | 0.05 max | 0.15 max | Balance |
ASME / ASTM
Mechanical Properties
Grade | Yield Strength (ksi) | Tensile Strength (ksi) | Elongation (%) | Hardness (HB) | Modulus of Elasticity (ksi) |
---|---|---|---|---|---|
A36 | 36 | 58 – 80 | 20 | 119 – 159 | 29,000 |
A106B | 35 | 60 – 80 | 20 | 120 – 170 | 29,000 |
A53B | 35 | 60 – 90 | 20 | 120 – 160 | 29,000 |
A516-70 | 38 | 70 – 90 | 20 | 130 – 170 | 29,000 |
A572-50 | 50 | 65 – 85 | 20 | 130 – 160 | 29,000 |
A992 | 50 | 65 – 75 | 20 | 120 – 160 | 29,000 |
A234 WPB | 30 | 60 – 80 | 20 | 120 – 160 | 29,000 |
A105 | 36 | 70 – 100 | 20 | 120 – 160 | 29,000 |
A307 | 30 | 60 – 80 | 20 | 120 – 150 | 29,000 |
A325 | 60 | 90 – 120 | 18 | 120 – 160 | 29,000 |
