Description

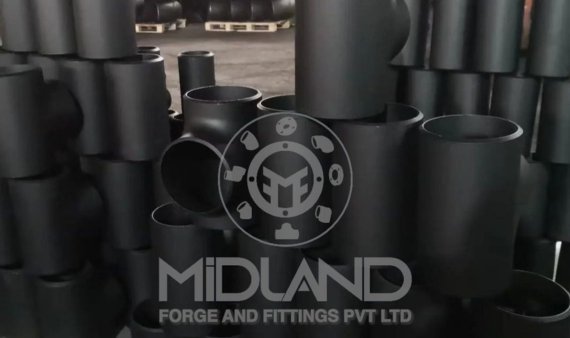

Midland Forge and Fittings Pvt. Ltd. is a trusted manufacturer of high-quality buttweld fittings in India, serving industries worldwide. With advanced production capabilities and a focus on precision engineering, the company offers a comprehensive range of buttweld fittings, including elbows, tees, reducers, caps, and stub ends. Designed to meet ASME, ANSI, and custom specifications, these fittings ensure seamless and durable connections in piping systems.
ASME B16.9
Buttweld Fittings Specifications
Dimensions
ASME/ANSI B16.9, B16.28, MSS-SP-43, BS4504, BS4504, BS10
Size range
Seamless Fittings: 1/2″ – 24″, Welded Fittings: 4″ – 72″
Schedule
Schedule 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS
Bending Radius
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Materials
Stainless Steel, Carbon Steel, Alloy Steel, High Nickel, Titanium, Mild Steel, Duplex & Super Duplex
Applications
Oil and gas, petrochemicals, power generation, and water treatment
ASME B16.9 / MSS-SP-43
Buttweld Types
Elbows
45°, 90°, 180° – Long & Short Radius
Tees
Reducers
End Caps
Stub Ends
Crosses
Pipe Bends
Get a Quote
ASME B16.9
Buttweld Fittings Dimensions
| Nom, Pipe Size |
Depth of Sock, Min |
Sock, Bore Diameter B |
Bore Diameter of Fitting D | Wall Thickness Minimum | entre to Bottom of Socket | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3000# | 6000# | 90º Elbow, Tee & Crosses | 45º Elbow | |||||||||
| A | A | |||||||||||
| 3000# | 6000# | Sock, C | Body G | Sock C | Body G | 3000# | 6000# | 3000# | 6000# | |||
| 1/8” | 3/8 | .420 .430 |
.254 .284 |
.141 | .125 | .095 | .135 | .124 | 7/16 | 7/16 | 5/16 | 5/16 |
| 1/4 | 3/8 | .555 .565 |
.349 .379 |
.235 | .130 | .119 | .158 | .145 | 7/16 | 17/32 | 5/16 | 5/16 |
| 3/8 | 3/8 | .690 .700 |
.478 .508 |
.344 | .138 | .126 | .172 | .158 | 17/32 | 5/8 | 5/16 | 7/16 |
| 1/2 | 3/8 | .855 .865 |
.607 .637 |
.451 | .161 | .147 | .204 | .188 | 5/8 | 3/4 | 7/16 | 1/2 |
| 3/4 | 1/2 | 1.065 1.075 |
.809 .839 |
.599 | .168 | .154 | .238 | .219 | 3/4 | 7/8 | 1/2 | 9/16 |
| 1 | 1/2 | 1.330 1.340 |
1.034 1.064 |
.800 | .196 | .179 | .273 | .250 | 7/8 | 1-1/16 | 9/16 | 11/16 |
| 1-1/4 | 1/2 | 1.675 1.685 |
1.365 1.395 |
1.145 | .208 | .191 | .273 | .250 | 1-1/16 | 1-1/4 | 11/16 | 13/16 |
| 1-1/2 | 1/2 | 1.915 1.925 |
1.595 1.625 |
1.323 | .218 | .200 | .307 | .281 | 1-1/4 | 1-1/2 | 13/16 | 1 |
| 2 | 5/8 | 2.406 2.416 |
2.052 2.082 |
1.674 | .238 | .218 | .374 | .344 | 1-1/2 | 1-5/8 | 1 | 1-1/8 |
| 2-1/2 | 5/8 | 2.906 2.921 |
2.439 2.499 |
.301 | .276 | .375 | 1-5/8 | 1-1/8 | ||||
| 3 | 5/8 | 3.535 3.550 |
3.038 3.098 |
.327 | .300 | .438 | 2-1/4 | 1-1/4 | ||||
| 4 | 3/4 | 4.545 4.560 |
3.996 4.055 |
.368 | .337 | .531 | 2-5/8 | 1-5/8 | ||||
